GTEM2000 – GTEM2100
| Select another model: | |
 |
|
| Manual GTEM-2000_2018
Select another model: |
|
| GTEM2000 – Main Technical Specifications / Max EUT Size | |
| Frequency range: | 0,01 MHz – 20GHz* |
| Septum Height [mm]: | 2000 |
| Max EUT Size (LxWxH)cm | 150x150x132 cm. |
| Defined test Vol. within 6dB | 67x67x67 cm. |
| Typical VSWR | 1:1,2 |
| Typical VSWR at the critical frequency | <1:1,6 |
| Max Input power, W continuous/*pulsed | 2,500/*5Kw |
| Input connector | N or 7/16″ |
| Nominal impedance | 50 Ohm |
| Window in the door | Diam.200 mm. |
| Empty Technical panel | N.2 Diam.200 mm. |
| Mechanical Dimensions | |
| Outer LxWxH [cm]: | 933×480,5×306 |
| Door WxH [cm]: | 100×160 clear passage |
| Weight Kg. Approx. | 2000 |
| Wheeled undercarriage (Cost Option) | 25cm high |
| Electrical Specifications | |
| Mains connectors | Fix/CEE |
| Main Switch | 16A magneto-thermal |
| Input Socket plugs | IEC 16A(Single phase+ground); 250V Banana plugs 10A 250V |
| Output Socket EUT tapes | Schuko 16A (Single phase+ground) 250V |
| Banana plugs 10A 250V | |
| Ground connection | M6 bolt |
| AC filter wires (Single PH+Ground); AC/DC filter wires | 16Amp. 2 wires+ground; 10A, 2 wires |
| Channel for fiber optic leads | 3 couples |
| RF feed-thru connectors | No.1 N-N, No.2 SMA-SMA double female |
| Indoor LED light | 2x20W |
| Electrical Equipment / Options | |
| AC filter 30A/2 wire (2PH+Ground) | DC Filter feed-thru 300A 450V |
| AC filter 16A/4 wires (3PH+N+Ground) | |
| Additional EUT sockets tapes | |
| Electrical safety interlock | |
| Multimedia I/O filter: RJ45, 2xUSB, RS232 (DB9) | |
| 25-poles signal filter (DB25) | |
| Channel for fiber optic leads (6 couples) | |
| Additional RF feed-thru N or SMA connectors | |
| Input RF connector 7/16″ | |
| RJ45 (RJ11) feed-thru connector | |
| Technical panel pre-drilled for options | |
| Video camera system | |
| Mechanical Equipment / Options | |
| Gas / Water feedthrough plates | |
| Honeycomb panel | |
| Larger Door upon request: 160x160cm | |
| Secondary doors: 40x40cm, 60x60cm or 80x80cm,
Manipulator |
|
 GTEMCELL GTEM2000
 GTEMCELL GTEM 2000 3,5KW heath-sink
GTEM2000 Apex 2018
|
||

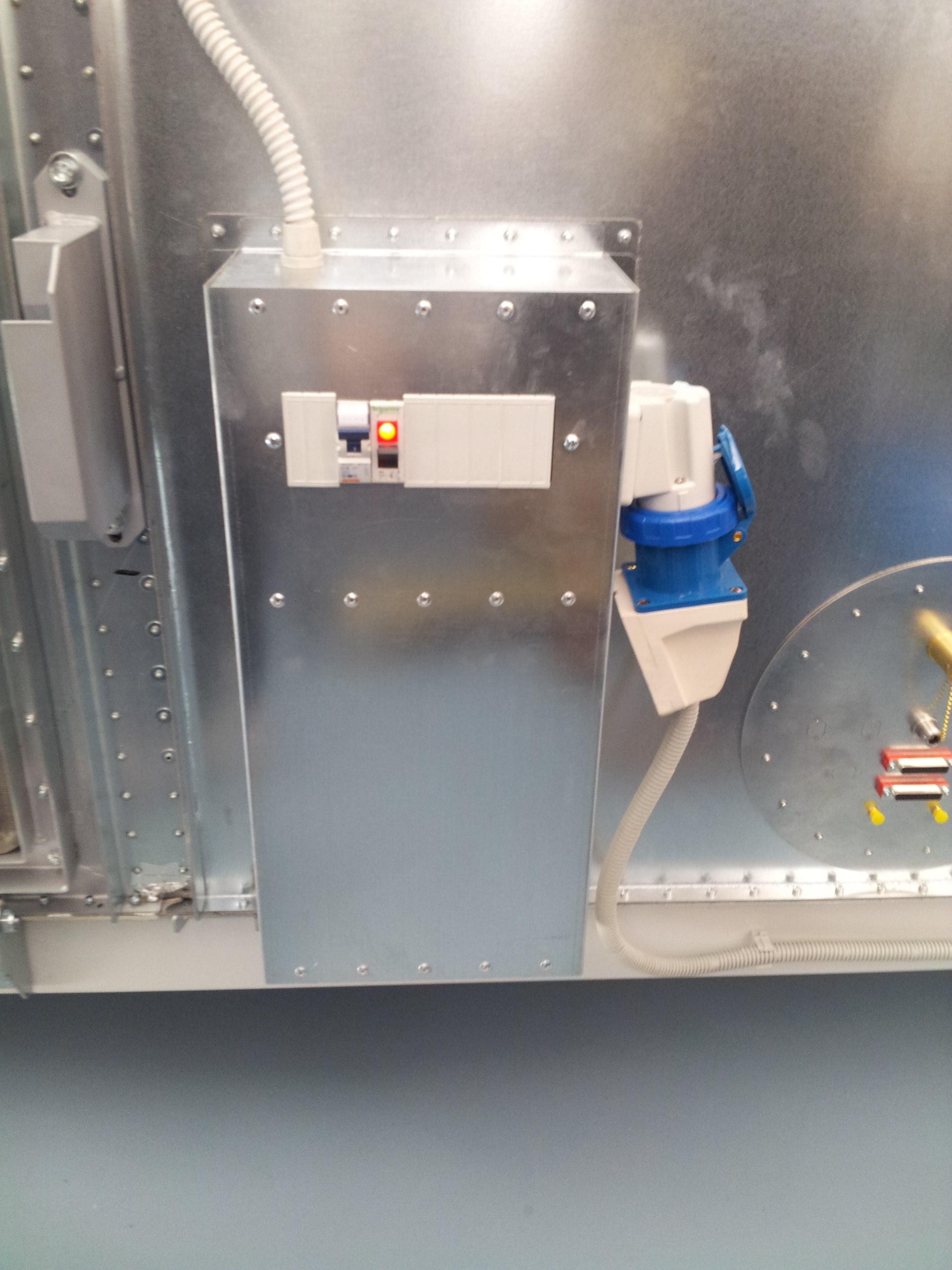

GTEM2000 Filter box
GTEM2000 Technical Panel
|
||

GTEMCELL GTEM2000 Spherical structure of 65 cm anechoic absorbers |
. | |
|
