GTEM2500 – GTEM2600
| Select another model: | |

|
|
|
Select another model: |
|
| GTEM2500 – Main Technical Specifications / Max EUT Size | |
| Frequency range: | 0,01 MHz – 20GHz* |
| Septum Height [mm]: | 2500 |
| Max EUT Size (LxWxH)cm | 200x200x182 cm. |
| Defined test Vol. within 6dB(+3,-3dB) | 84x84x84 cm. |
| Typical VSWR | 1:1,2 |
| Typical VSWR at the critical frequency | <1:1,6 |
| Max Input power, W continuous/*pulsed | 2000/*5Kw |
| Input connector | 7/16″ or N |
| Nominal impedance | 50 Ohm |
| Window in the door | Diam.200 mm. |
| Empty Technical panel | N.2 Diam.200 mm. |
| Mechanical Dimensions | |
| Outer LxWxH [cm]: | 1100x566x361 |
| Door WxH [cm]: | 100×160 |
| Weight Kg. Approx. | 2800 |
| Wheeled undercarriage (Cost Option) | 25cm high |
| Electrical Specifications | |
| Mains Switch | Fix/CEE, 16A Magneto-thermal |
| Input Socket | IEC 16A(Single phase+ground); 250V Banana plugs 10A 250VIEC 16A(three phase+N+ground) 450V (option) |
| Output Socket EUT tapes | Schuko 16A (Single phase+ground) 250V
IEC 16A three phase+N+Ground (option) |
| Banana plugs 10A 250V | |
| Ground connection | M6 bolt |
| AC filter wires (Single PH+Ground); AC/DC filter wires | 16Amp. 4 wires+ground
16Amp. 2 wires+ground; 10A, 2 wires |
| Channel for fiber optic leads | 3 couples |
| RF feed-thru connectors | N.2 N-N, N.2 SMA-SMA double female |
| Indoor LED light | 2x20W |
| Electrical Equipment / Options | |
| AC filter 30A/2 wire (2PH+Ground) | DC Filter feed-thru 300A 450V |
| AC filter 32A/4 wires (3PH+N+Ground) | |
| Additional EUT sockets tapes | |
| Optional interlock | |
| 9-poles signal filter | |
| 25-poles signal filter (DB25) | |
| Channel for fiber optic leads (6 couples) | |
| Additional RF feed-thru N or SMA connectors | |
| Circular waveguides | |
| RJ45 (RJ11) feed-thru connector | |
| Technical panel pre-drilled for options | |
| Video camera system | |
| Mechanical Equipment / Options | |
| Gas / Water feedthrough plates | |
| Honeycomb panel | |
| Larger Door upon request: 160x160cm | |
| Secondary doors: 40x40cm, 60x60cm or 80x80cm, | |
 GTEMCELL GTEM 2500 3KW heath-sink
|
|
|
  |
||
 GTEM25oo: termination details
GTEM2500 Technical Panel
GTEMCELL GTEM2500 Spherical structure of 65cm anechoic absorbers |

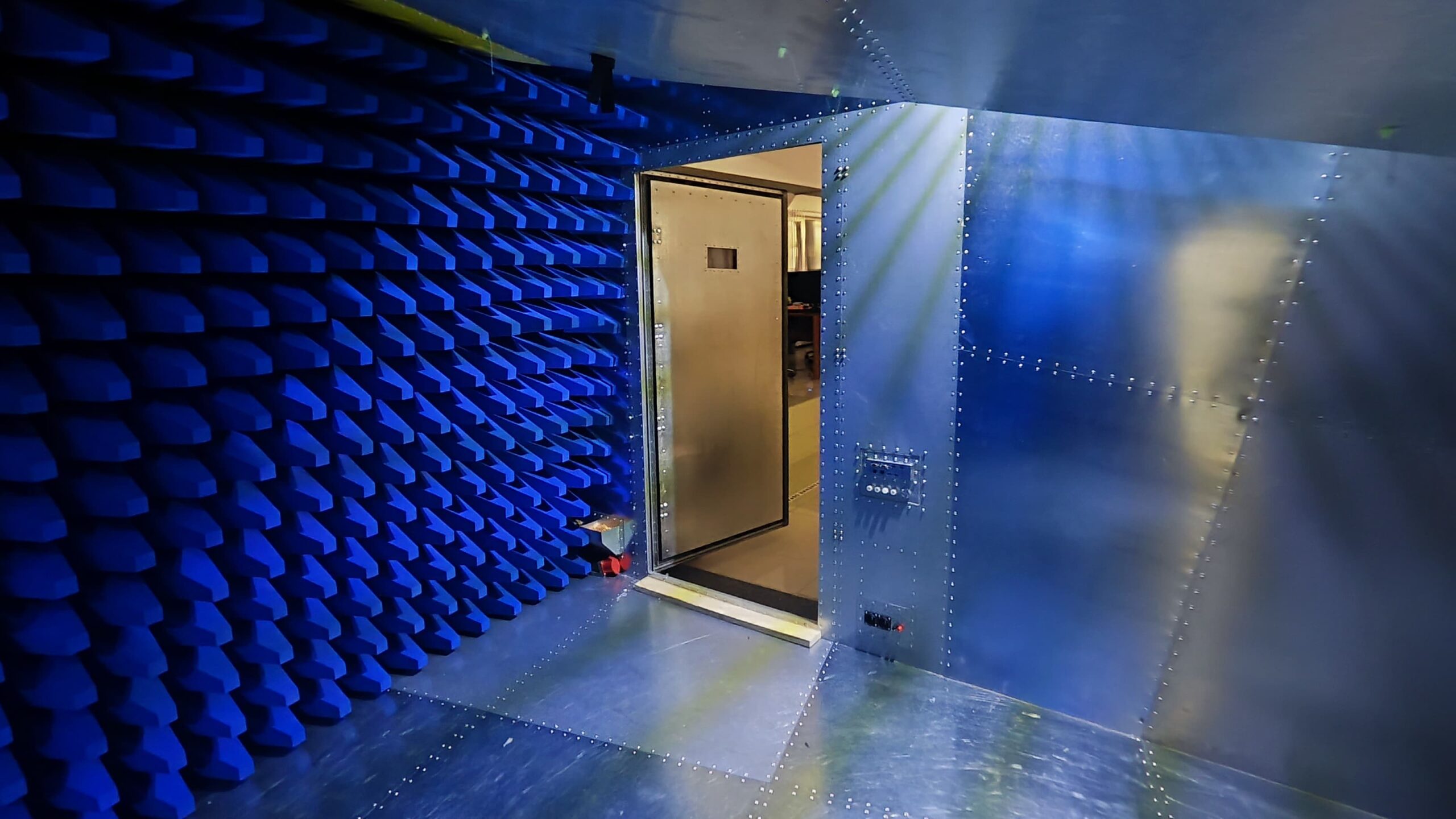

 inside view GTEMCELL GTEM2500
|
|
|
