| Frequency range | 0,01 MHz – 20GHz* |
| Septum Height [mm]: | 450 |
| Max EUT Size (LxWxH)cm | 35×40×25 |
| Defined test Vol. within 6dB | 15x15x15 cm. |
| Typical VSWR | 1:1,2 |
| Typical VSWR at the critical frequency | <1:1,6 |
| Max Input power, W continuous/*pulsed | 500/*2,5Kw |
| Input connector | 7/16″ and the adaptor to N |
| Nominal impedance | 50 Ohm |
| Window in the door | Diam. 200 mm. |
| Shielding effectiveness | from 40 to 65dB |
| Mechanical Dimensions | |
| Outer LxWxH [cm]: | Horizontal 270×136xH91 + 70cm. Trolley
Vertical Model: 923x1372xH2620mm. with trolley |
| Door WxH [cm]: Horizontal model | 40×45 clear passage (or optional 40×60) |
| Door WxH [cm]: Vertical Model: | 60×60 cm |
| Weight Kg. Approx | 190 |
| Electrical Specifications | |
| Mains connectors | Fix/CEE |
| Main Switch | 16A magneto-thermal |
| Input Socket plug | 16Aac (Single phase + ground) IEC |
| Output Socket EUT tape | 16Aac (Single phase + ground) Schuko |
| Ground connection | M6 bolt |
| Channel for fiber optic leads | 3 couples |
| AC filter wires (Single PH+Ground) | 16Amp. 2 wires |
| Secondary AC/DC Filter | 10A AC/DC 250V |
| IN/OUT AC/DC Filter connectors | Banana 4mm |
| RF feed-thru SMA type connectors | N.2 SMA and N.1 N double females |
| Absorbers Type | Truncated pyramidal 51cm.Height |
| Electrical Equipment / Options | |
| AC filter 32A/2 wire (2PH+Ground) | |
| AC filter 16A/4 wires or 36A (3PH+N+Ground) | |
| Electrical safety interlock | |
| Indoor lighting 20W LED | |
| 9-pole signal filter (DB9) | |
| 25-pole signal filter (DB25) | |
| Channel for fiber optic leads (3 or 6 couples) | |
| Additional RF feed-thru N-type connectors | |
| Additional RF feed-thru SMA-type connectors | |
| RJ45(RJ11) feed-thru connector | |
| Technical panel pre-drilled for options | |
| Video camera system | |
| N.2 USB feed-thru connectors | |
| Mechanical Equipment / Options | |
| Gas / Water feedthrough plates | |
| Honeycomb panels | |
| Fans N.1 12×12cm | |
| Empty Technical panel | |
| Wheeled undercarriage | |

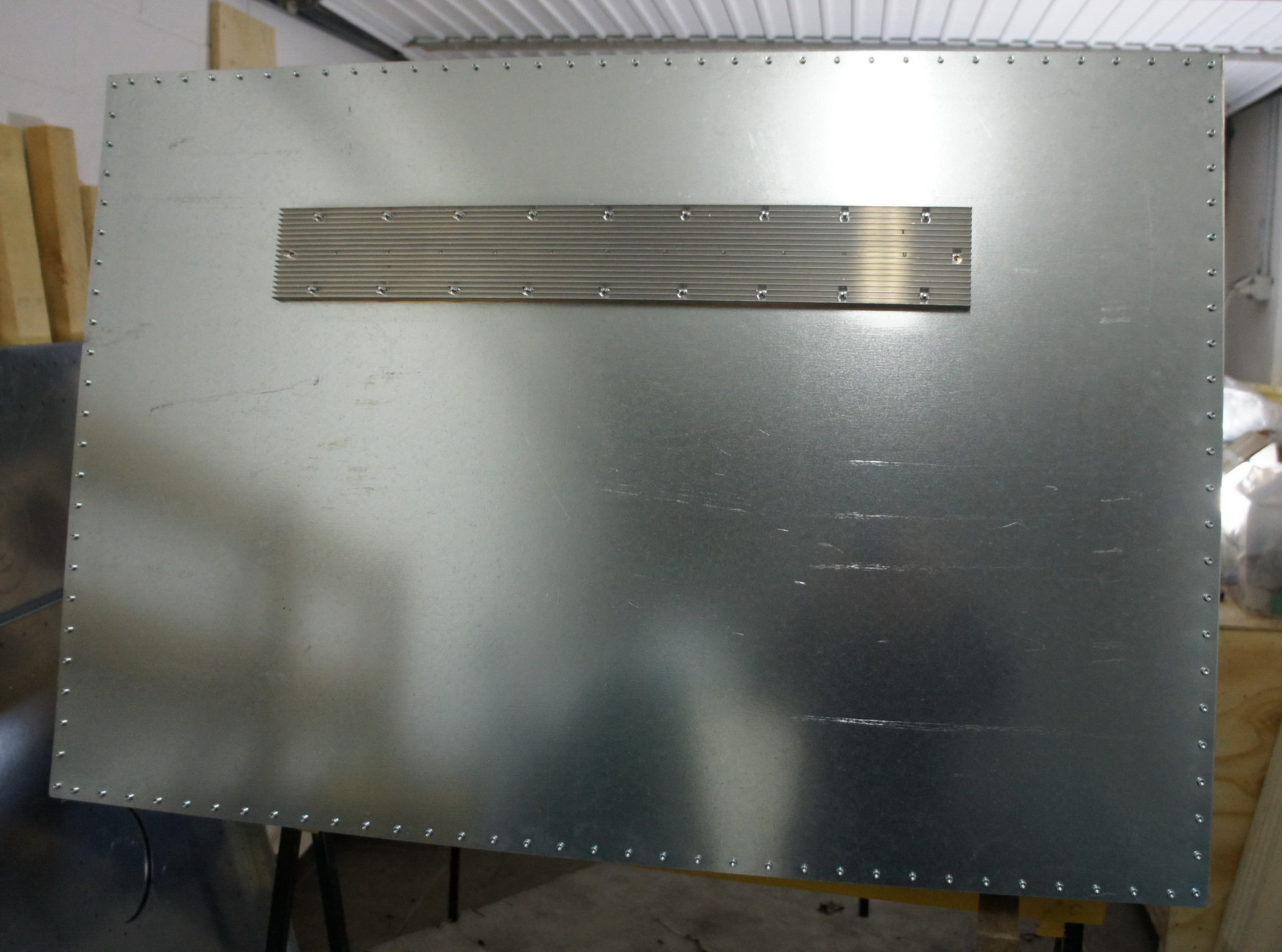

SAE Template On
Internal view GTEM500
Select more models:GTEM cells: 250–500–550–550 VF–750–1000–1100F–1250–1500–1750–2000–2500. |
