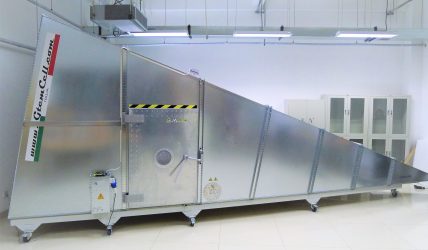

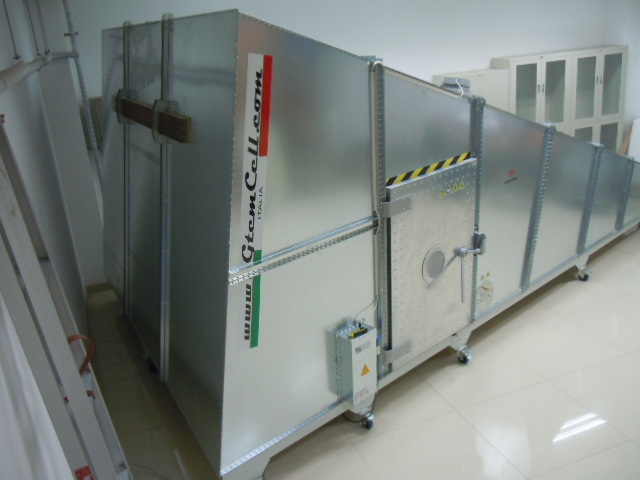

| GTEM 1500 – Main Technical Specifications / Max EUT Size | |
| Frequency range | 0,01 MHz – 20GHz* |
| Septum Height [mm]: | 1500 |
| Max EUT Size (LxWxH)cm | 110x110x100 cm |
| Defined test Vol. within +6dB | 50x50x50 cm |
| Typical VSWR | 1:1,2 |
| Typical VSWR at the critical frequency | <1:1,6 |
| Max Input power, W continuous/*pulsed | 700/*1,5Kw |
| Input connector | N or 7/16″ |
| Nominal impedance | 50 |
| Window in the door | Diam.200 mm. |
| Empty Technical panel | N.2 Diam.200 mm. |
| Mechanical Dimensions | |
| Outer LxWxH [cm]: | 710x358x255 |
| Door WxH [cm]: | 80×120 *usefull passage. |
| Weight Kg. Approx. | 1300 |
| Wheeled undercarriage (Cost Option) | 25cm high |
| Electrical Specifications | |
| Mains connectors | Fix/CEE |
| Main Switch | 16A magneto-thermal |
| Input Socket plug | 16Aac (Single phase + ground) |
| Output Socket EUT tape | 16Aac (Single phase + ground) |
| Additional EUT sockets | Optional |
| Ground connection | M6 bolt |
| AC filter wires (Single PH+Ground) | 16Amp. 2 wires |
| Channel for fiber optic leads | 3 couples |
| RF feed-thru connectors | n.1 N, N.2 SMA double female |
| Indoor LED illumination | n.2x20W |
| Electrical Equipment / Options | |
| AC filter 30A/2 wire (2PH+Ground) | |
| AC filter 16A/4 wires (3PH+N+Ground) | |
| AC/DC feed-thru filter 300A 450V | |
| Electrical safety interlock | |
| 9-poles signal filter (DB9) | |
| 25-poles signal filter (DB25) | |
| Channel for fiber optic leads (6 couples) | |
| Additional RF feed-thru N-type connector | |
| Additional RF feed-thru SMA type connector | |
| RJ11 (RJ9) feed-thru connector | |
| Technical panel pre-drilled for options | |
| Video camera system | |
| Mechanical Equipment / Options | |
| Gas / Water feedthrough plates | |
| Honeycomb panel | |
| Larger Door: 140x140cm. | |
| Empty Technical panel
Secondary door:40x40cm or 60x60cm Manipulator |
|
